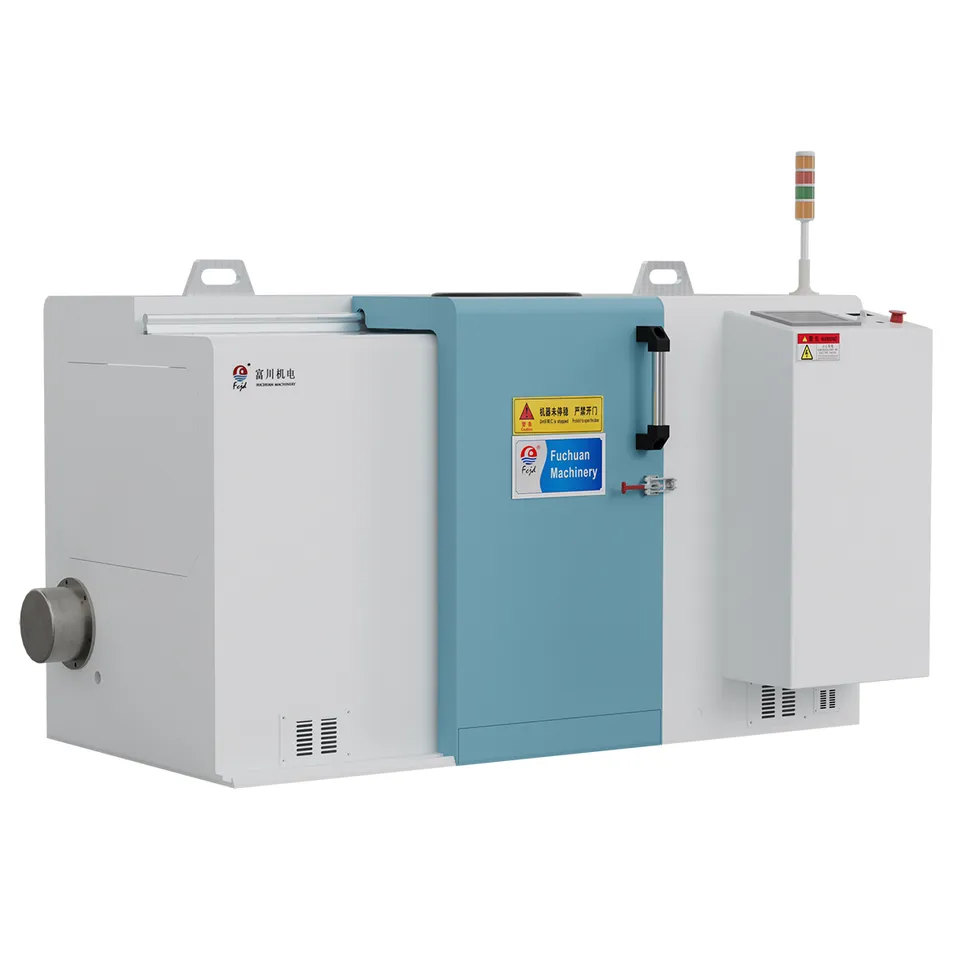

Copper Wire Bunching Machine Automatic Model FC 250B High Speed Stranding Ultra Fine Conductors

Name: Copper Wire Bunching Machine Automatic Model FC 250B High Speed Stranding Ultra Fine Conductors
Brand: FUCHUAN
Price: 1 USD

Buy cheap Copper Wire Bunching Machine Automatic Model FC 250B High Speed Stranding Ultra Fine Conductors product

Spool Specifications : φ200mm-φ250

Voltage : 380V

Copper Wire Dia : 0.03mm-0.18mm

Pitch : can be adjudtable

Max Rotating Speed : 4000(8000tpm)

Color : sky blue / apple green

Finish : Tempering And Grinding

Operation Mode : touch screen operation

Other Name : Copper Punching Machine

Take Up Bobbin : diameter 250mm

Main Motor : 4.0KW

Cross Section : 0.0049-0.3mm2

Pitch Range : 0.8-10.8mm

Brand Name : FUCHUAN

Model Number : FC-250B

Certification : CE

Place of Origin : China Kunshan

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200SETS/MONTH

Delivery Time : 45days

Packaging Details : simply packed

Take-up Spool : 200-250mm

Application : Ultra fine conductors

Twist Type : Double twist

Wire Diameter : 0.03-0.18mm

Max Speed : 4000rpm

Contact Now

Basic Info.

Model NO.

FC-250B

Condition

New

Certification

FDA, RoHS, ISO, CE

Warranty

24 Months

Automatic Grade

Automatic

Mould Life

<300,000 Shots

Type

High-speed Stranding Machine

Model No.

FC-250b

Bow

Carbon Fiber/Stainless Steel

Color

Customized

Etd

30days

Max Speed

4000rpm

Power

4kw

Transport Package

Wooden Box

Specification

1000kg

Trademark

FCJD

Origin

Kunshan, China

HS Code

8479400000

Production Capacity

200 Sets Per Month

Product Description

Series of Model B Ultra Fine Wire High Speed Bunching Machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing

projects. Designed with advanced technology and robust materials, this bunching machine ensures high

speed, smooth operation. It is suitable for stranding of extremely ultra fine conductors (alloy wire, tin-plated

wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices,

mobile phones, laptops, etc.

Specification

Technical Specifications

(Custom configurations available upon request.)

Model	FC-250B	FC-300B	FC-400B	FC-450B
Wire dia. (mm)	Φ0.03-0.18	Φ0.04-0.28	Φ0.05-0.32	Φ0.05-0.32
Cross section (mm2 )	0.0049-0.3	0.0088-0.45	0.0137-1.0	0.0137-1.0
Pitch (mm)	0.8-10.8	1.6-21.6	3.1-33.3	3.1-33.3
Take-up Spool size (mm)	Φ200-Φ250	Φ250-Φ300	Φ300-Φ400	Φ300-Φ450
Main motor power	4.0KW	4.0KW	4.0KW	4.0KW
Inverter Power	3.7KW	3.7KW	3.7KW	3.7KW
Max speed (rpm)	4000	3500	3000	3000
Stranding direction	S/Z	S/Z	S/Z	S/Z
Magnetic power clutch	0.3kgf	0.6kgf	0.6kgf	0.6kgf
Tension control	PLC+Magnetic powder clutch
Protection	Automatic brake on wire break by electromagnetic brake

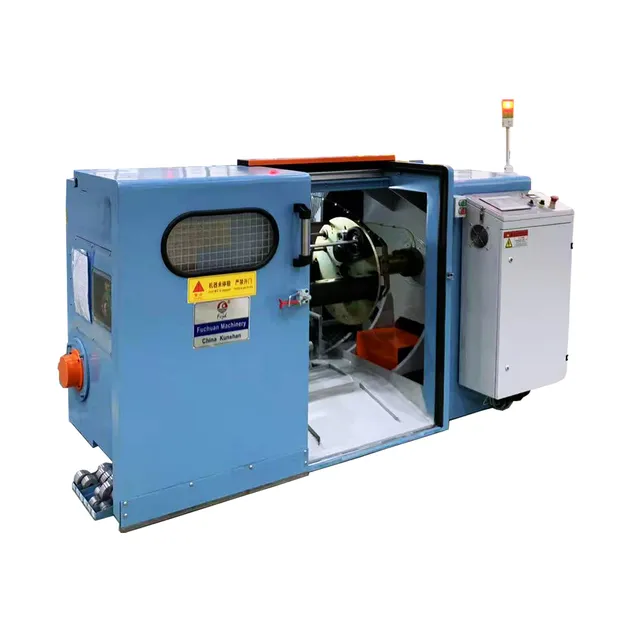

Copper Wire Bunching Machine Automatic Model FC 250B High Speed Stranding Ultra Fine Conductors

Features

1. Ethernet port is reserved for IoT access, which

can display the speed, stranding details, line speed,

equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly

ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing

width and lay length is adjustable.

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team

can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over

20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed

by R&D innovation and strict quality control.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Single twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

Certifications

Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.

With ISO9001

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
