Sky Blue Double Twist Bunching Machine 650Rpm Rotating Speed Equipment

Core Wires : 2-7 pcs cabling

Twist Type : Torsion-free cabling

Max Speed : 1000rpm

Price : negoticable

Pay-off : 630 magnetic tension

Wire Diameter : 1.5-5.0mm

Application : High frequency data cable

Brand Name : Fuchuan

Model Number : FC-630E

Certification : CE

Place of Origin : China

MOQ : 1set

Supply Ability : 50 SETS/MONTH

Delivery Time : 45days

Packaging Details : customary packed

Color : Sky blue

Fit for bobbin : diameter 630mm

Fit copper wire : 0.12mm-0.52mm

Wire : core wire,bare copper wire,tinned wires,silver jacketed wires

Twist outer diameter : 3-12mm

Rotating speed : 650rpm wire processing equipment

Rotating Speed : 650rpm

Twisted Outer Dia : 3-12mm

Contact Now

Sky Blue Double Twist Bunching Machine 650Rpm Rotating Speed

FC-630E torsion free / no twist cabling machine

This machine is the latest developed products.It is applied for high frequency data cable no torsion twist,fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material,and achieve the bundling function(when wrapping tape is break the machine will stop automatically). Machine is magnetic stable tension pay off,this cabling type,make the insulated core wire interlace uniformly,avoid the non-uniform twist force,thus make the finished wire with the uniform,precision pitch.It is highly improved the quality and stablility of the core wires.

Components:

1. Mainly fit for 2-3 pcs core wire twist+bundling

2. Fit for wire : dia 1.5mm-5.0mm

3. Twist outer diameter: 3-12mm

4. Rotating speed: 650rpm

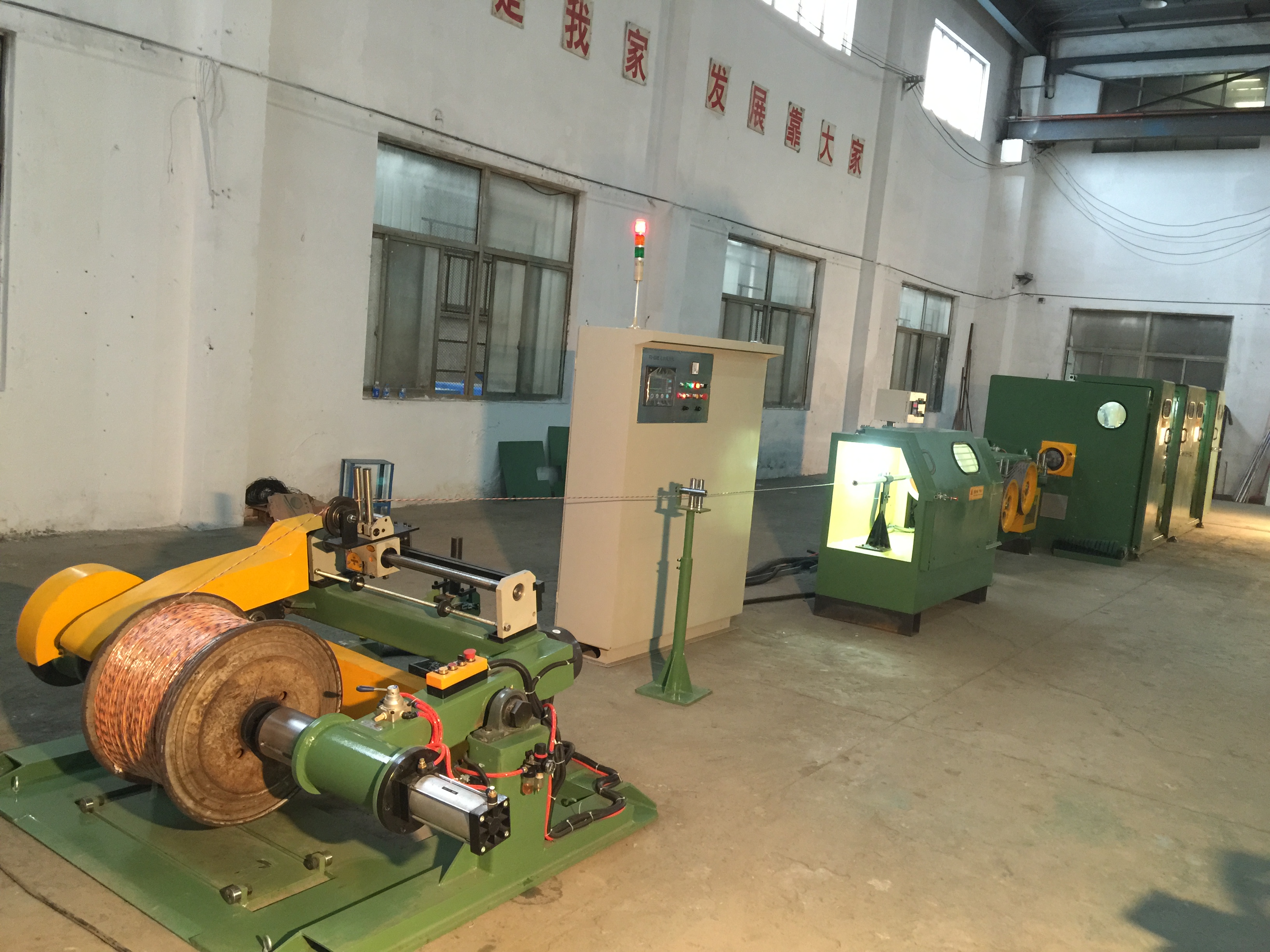

5. 630magnetic tension pay off + 630 bow twisting machine+centre wrapping machine+510 double wheel hauling machine+ 630-1000take up machine

6. Direction of lay: optional for right or left

7. Max rotating speed: 1000rpm

Sky Blue Double Twist Bunching Machine 650Rpm Rotating Speed EquipmentSky Blue Double Twist Bunching Machine 650Rpm Rotating Speed Equipment
