630 Bobbin Low Noise Copper Wire Bunching Machine Equipment 19 Pcs 0.41 Wire

  • 1
  • 2

Fit for wire : 19pcs copper wires φ0.16mm - φ0.64mm in one time

Fit for bobbin : diameter 800 mm

wire : 19pcs of copper wire

Max rotating speed : 2000(4000twist)

Take up bobbin size : φ630*φ125*475

Total power : 21KW wire cable machine

Total Power : 21KW / 35KW

Wire Diameter : 0.16-0.64mm

Stranding Area : 2.5-6.0mm2

Features : Low noise, energy saving

Application : 19pcs copper wire bunching

Tension Control : Touch screen + PLC

Brand Name : FUCHUAN

Model Number : FC-1+6(800F)+12

Certification : CE

Place of Origin : China Kunshan

MOQ : 1set

Price : negotiable

Payment Terms : T/T, L/C

Delivery Time : 8 weeks

Packaging Details : simple packing

Brake Mode : Electromagnetic brake

Bobbin Size : 630mm / 800mm

Max Speed : 2000rpm (4000 twist)

Contact Now

FUCHUAN 19 Pcs 0.41 Copper Wire Bunching Machine / Equipmet 630 Bobbin Low Noise​

Quick Details:

Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time

New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.

Characteristics:

Japan Technology, product in China

It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.

Specifications:

Equipment models

1+6+12(630bobbin)

FC-1+6+12(800bobbin)

Twisting usage

It is applicable to bunching 19pcs copper wires in one time

Single wire dia(mm)

φ0.16-φ0.64

Stranding section area (mm²)

2.5-6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Pay off bobbin size

φ630*φ127*475

φ800*φ127*600

Max rotating speed

2000(4000twist)

1200(2400twist)

Pay off type

Mechanical friction

Magnetic tension

Pay off machine power

5.5KW

7.5KW

Take up bobbin size

φ630*φ125*475

φ630*φ125*475

Total power

21KW

35KW

Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5.0kgf

10.0kgf

Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

10000L*2500W*1650H

10000L*2500W*1650H

Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container

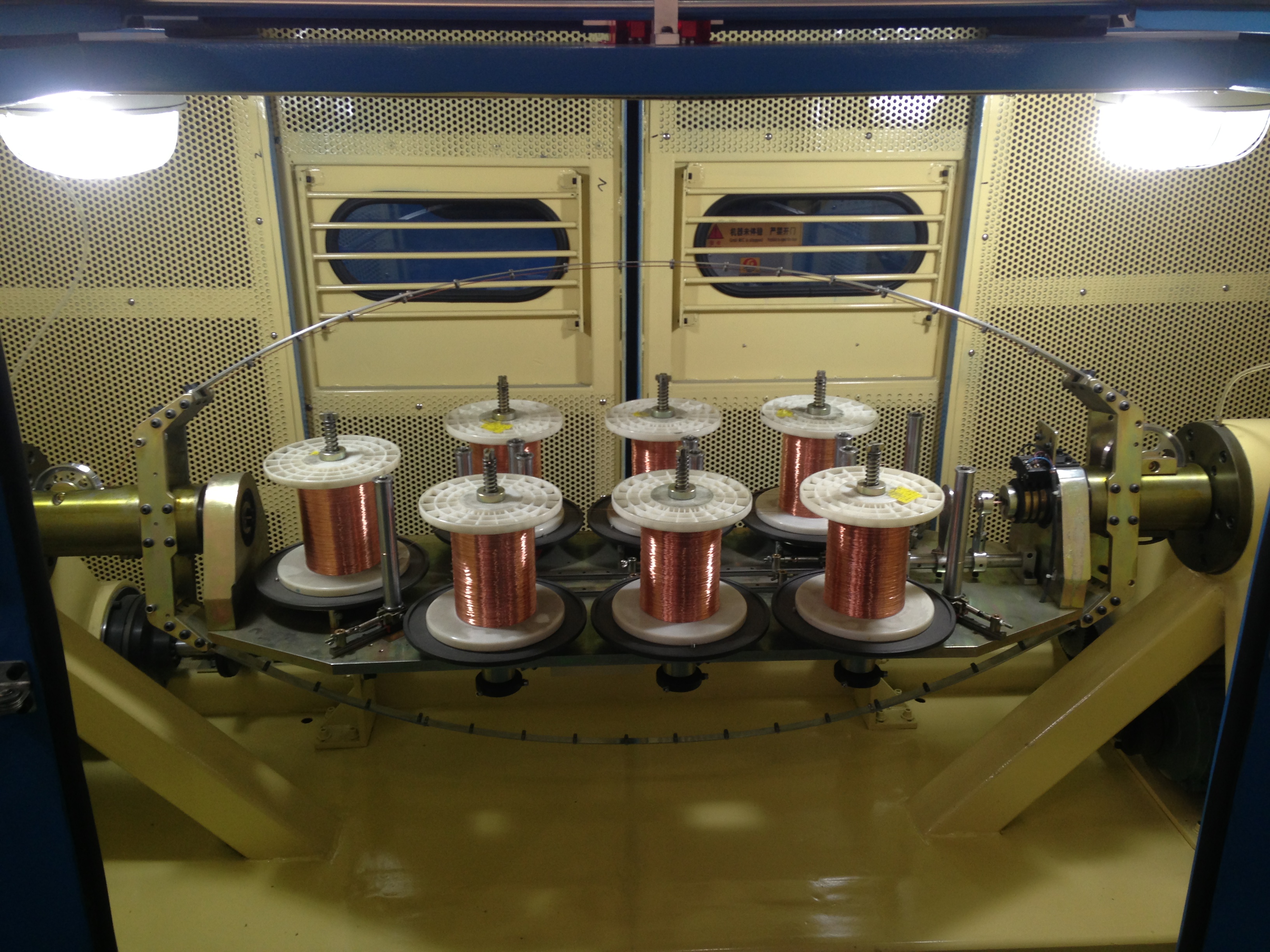

630 Bobbin Low Noise Copper Wire Bunching Machine Equipment 19 Pcs 0.41 Wire
