FUCHUAN 4000 Twist Copper Wire Bunching Machine Touch Screen Operation 19 Pcs

Name: FUCHUAN 4000 Twist Copper Wire Bunching Machine Touch Screen Operation 19 Pcs
Brand: FUCHUAN
Price: 1 USD

Buy cheap FUCHUAN 4000 Twist Copper Wire Bunching Machine Touch Screen Operation 19 Pcs product

Take-up Power : 7.5KW

Stranding Area : 0.38-6.0mm2

Application : 19pcs copper wire bunching

Brake Mode : Electromagnetic brake

Pitch Range : 11.6-100mm, 34 classes

Tension Control : Touch screen + PLC

Brand Name : FUCHUAN

Model Number : FC-1+6+12

Certification : CE

Place of Origin : China Kunshan

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 45 DAYS

Packaging Details : simple packing

Wire Diameter : 0.16-0.64mm

Dimension : 10000x2500x1650mm

Max Speed : 2000rpm (4000 twist)

Pay-off Power : 5.5KW / 7.5KW

Fit for wire : 19pcs copper wires φ0.16mm - φ0.64mm in one time

Fit for bobbin : diameter 630 or 250mm

Name : cable twisting machine

Pay-off bobbin : dia180 or dia630

Take-up bobbin : dia630

Alternative : tube bunching machine

Stranding section area : 0.38-6.0mm2

Supply Ability : 500 sets per month

Contact Now

4000Twist Copper Wire Bunching Machine With Touch Screen Operation

Quick Details:

Apply for bunching 19pcs copper wires synchronous.

Characteristics:

1. Energy-saving, small size, low noise, etc.

2. New arrival, instead of 200 tube bunching machine,

3. Have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),

Specifications:

Equipment models	1+6+12(200 and 250bobbin)	1+6+12(630bobbin)
Twisting usage	Apply for bunching 19pcs copper wires synchronous
Single wire dia(mm)	0.16～0.64
Stranding section area (mm²)	0.38～6.0
Pitch(mm)	11.6-100(34classes)
Direction of lay	Free to right or left
Pay-off bobbin size	8inch,9inch	OD630 ID125 H475
Pay-off type	Mechanical friction	Magnetic powder tension
Take-up bobbin size	OD630 ID127 H475 or OD630 ID56 H475 (Customized)	OD630 ID127 H475 or OD630 ID56 H475 (Customized)
Max rotating speed	2000rpm(4000twist)	2000rpm(4000twist)
Pay-off machine power	5.5KW	7.5KW
Take-up motor power	7.5KW	7.5KW
Tension control	Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch	5kgf	5kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode	Electromagnetic brake
Traversing method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation	Touch screen
Dimension(mm)	10000L 2500W 1650H	10000L 2500W 1650H

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

FUCHUAN 4000 Twist Copper Wire Bunching Machine Touch Screen Operation 19 Pcs

Product Tags:

Bunching Machine

Wire Buncher

Twisting Equipment

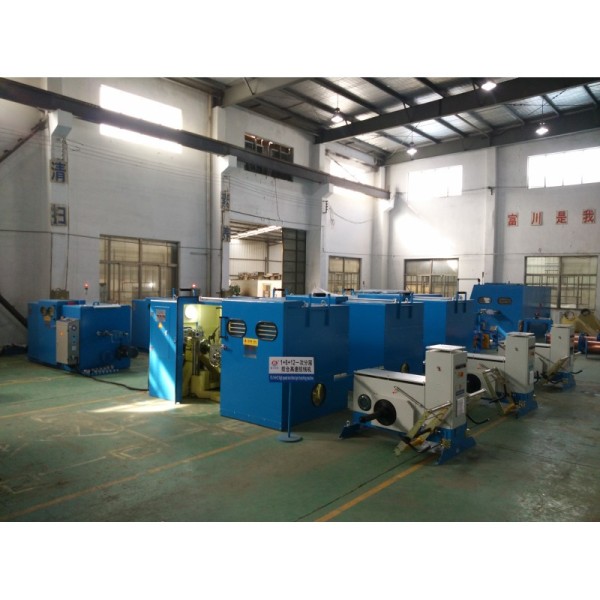

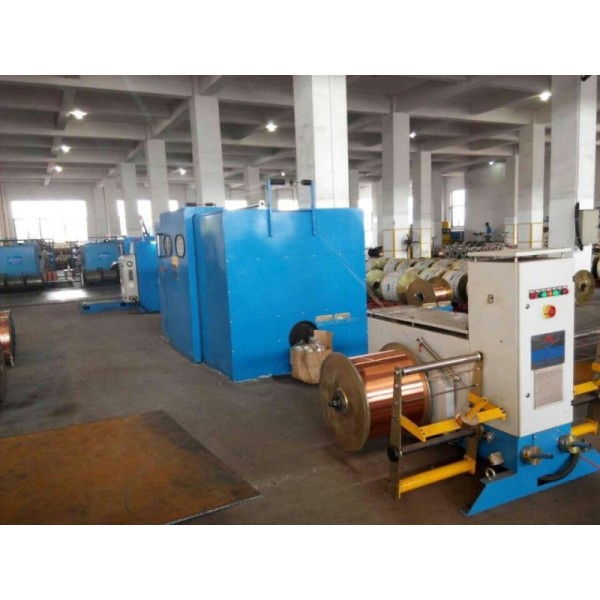

FUCHUAN 4000 Twist Copper Wire Bunching Machine Touch Screen Operation 19 Pcs Images
